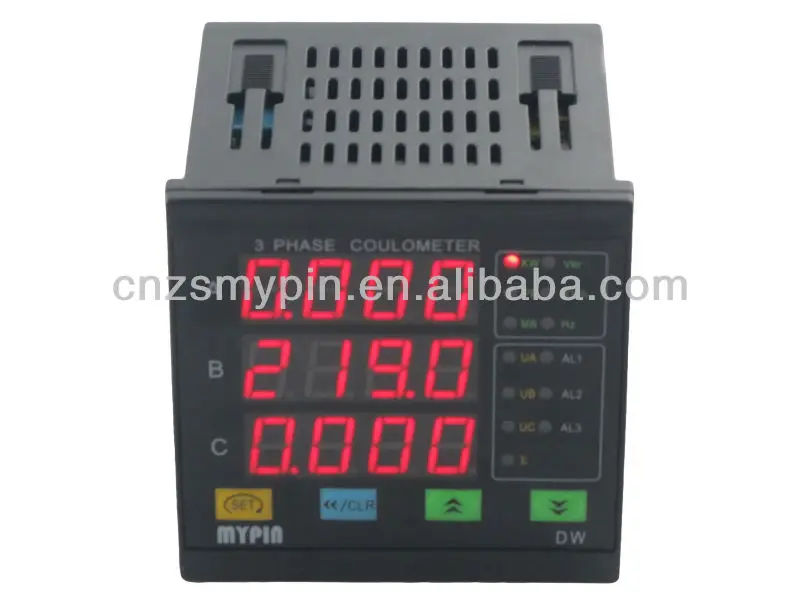

MYPIN 3 phase RS485 M-bus current voltage frequency AC power meter(DW9-3NN4AV600AA5)

FOB Reference Price:Get Latest Price
$80.00 - $90.00 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Mypin
Model Number:
DW9-3NNAV600AA5
Measuring Current Range:
any>1uA
Measuring Voltage Range:
any>1mV
Accuracy Class:
0.2%
Operating Temperature:
0-50 centigrade
Dimensions:
96*96*80mm
Display:
3 lines 4 digits LED
Measure parameters:
Volt,Amp, Power,Power factor, Frequency,KWH,Inactive Power
Frequency:
0-2.5KHz
CT/PT:
set freely
Sampling speed:
2 times/sec.
Weight:
about 450g
RS485 AC Power Meter:
RS485 AC Power Meter
Supply Ability
Supply Ability:
300 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
each pieces packed in box lined with plastic bag,then every30 or 50 box in carton
Port
Shenszhen
MYPIN 3 phase RS485 M-bus current voltage frequency AC power meter(DW9-3NN4AV600AA5)









Product Description

Dimensions:    96W*96H*80L mm

Power Supply:  90-260V AC/DC

Measure parameters: True effective value measurements for 3 phse Amp, Volt, Power,

                                       Power  factor,Frequency, Kwh, Inactive power

Input: AC 0-600V 0-5A( large current/volt can be input by working with relative CT/PT)

Amp/Volt ratio:  CT/PT set freely

Frequency: 0-2.5KHz

Accuracy:  Volt:  ± 0.2%FS± 2 digit

                  Amp:  ± 0.2%FS± 2 digit

                 Power: ± 0.3%FS± 2 digit

                  Power factor: ± 0.3%FS± 2 digit

                 Frequency:0-400Hz ± 1Hz

Alarm output: none( capacity: AC 250V 3A or DC 30V 3A)

Sampling speed:about 2 times/sec.

Communication: RS485 MODBUS PROTOCOL ( RS232 available when any need)

Withstand voltage:AC 1500V/1min, (between terminal and outshell)

Resolution resistance: 100MΩ

Work environment: 0~50°c humidity: 35-85%RH

Weight: about 450g.







 Others can be selected in below chart




Packaging & Shipping( as an reference)



Shipment by Sea, Freight, or DHL/UPS/FEDEX/TNT/EMS/CHINA POST MAIL as per client's requirements.







Our Services





We provide 18 months warranty for all Mypin products.

OEM / ODM service available to meet up to client's requirements.
