DP3A panel size 48*96mm economic type AC single phase LED digital panel voltmeter, low price high quality voltage instrument

FOB Reference Price:Get Latest Price
$11.00 - $30.00 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Mypin
Model Number:
DP series
Display Type:
Digital Only
Measuring Range:
any
Accuracy Class:
0.3%
Supply Voltage:
110V/220V
Operating Temperature:
0-50C
Dimensions:
96WX48H
Measuring Voltage Range:
0-600V or any PT
digital panel voltmeter:
digital panel voltmeter
Supply Ability
Supply Ability:
100 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
each pieces packed in box lined with plastic bag,then every 30 or 50 boxes in carton
Port
Shengzhen

DP3A panel size 48*96mm economic type AC single phase LED digital panel voltmeter, low price high quality voltage instrument













Product Description







Features



1,Input: AC 0-5A 0-10A,etc.(Please indicate when it’s more than 10A)---Ampere meter

              AC 0-100V AC 0-600V---Voltage meter.

              DC 0-75mV DC 0-10V 0-100V 4-20Ma,------Ampere meter /Voltage meter

              with range adjustable.

2,Reliable, dedication,easy intallation.

3,Elegant, big inch LED display, visible in distance.

4,Display range:-1999~1999. Demical point settable.

5,Sampling speed≥4 times/sec.

6,Size: 96W*48H*80Lmm.

   Case class: IP65. Water-proof and dusty-proof.

7,Power supply: regular:  220V/110V,  Others: 12--30V AC/DC.

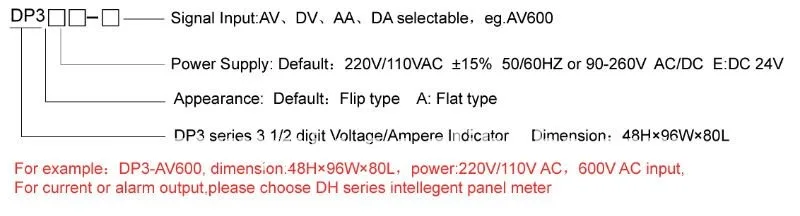

Code Illustration:

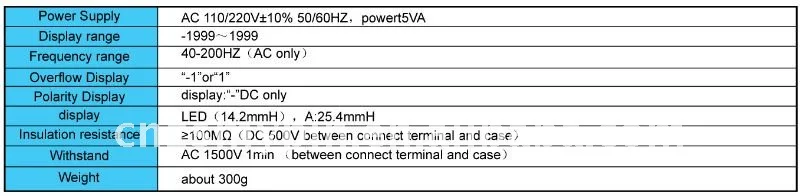

Technical Specification:

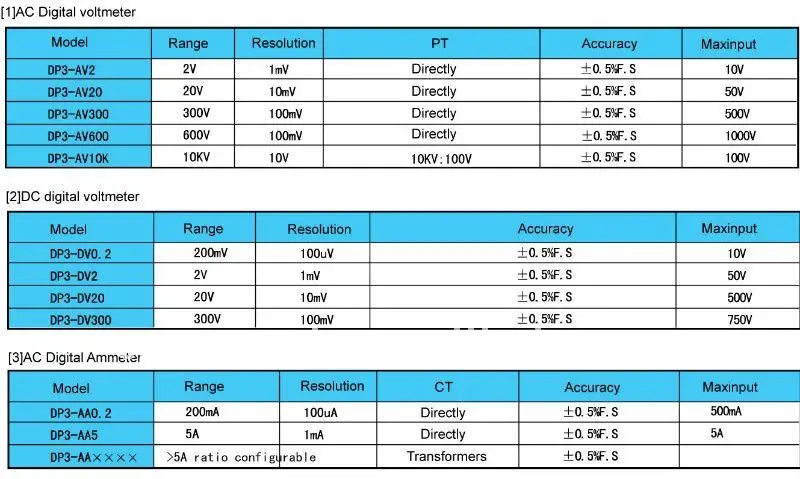

Models & Features:

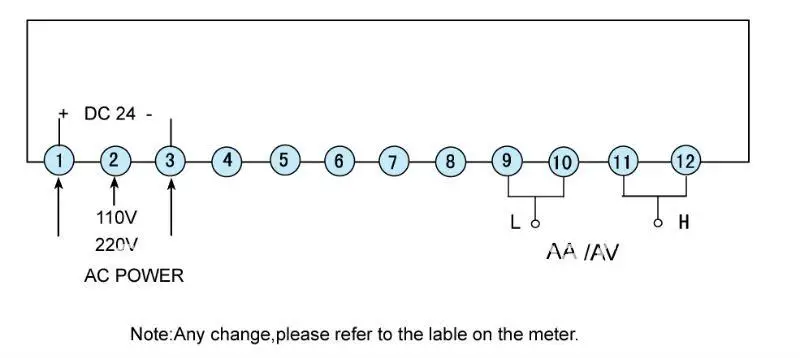

Connection:

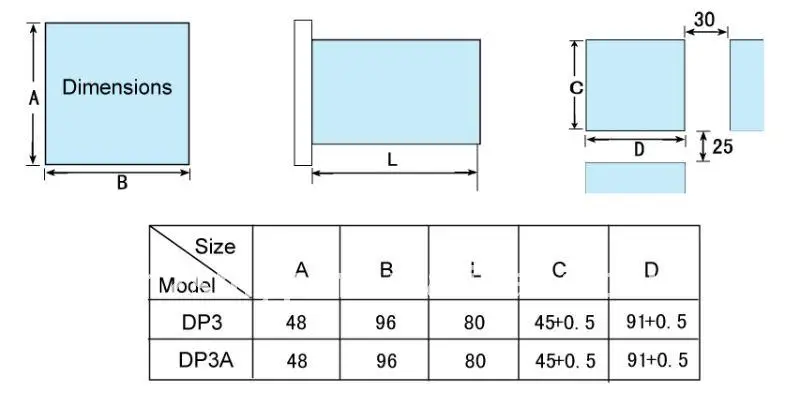

Dimensions:




Packaging & Shipping





Shipment by Sea, Freight, or DHL/UPS/FEDEX/TNT/EMS/CHINA POST MAIL as per client's requirements







Our Services



We provide 18 months warranty for all Mypin products.

OEM / ODM service available to meet up to client's requirements.
