2017--LC series chinese electronic control system digital indicator
LC10, 80-160*100mm size

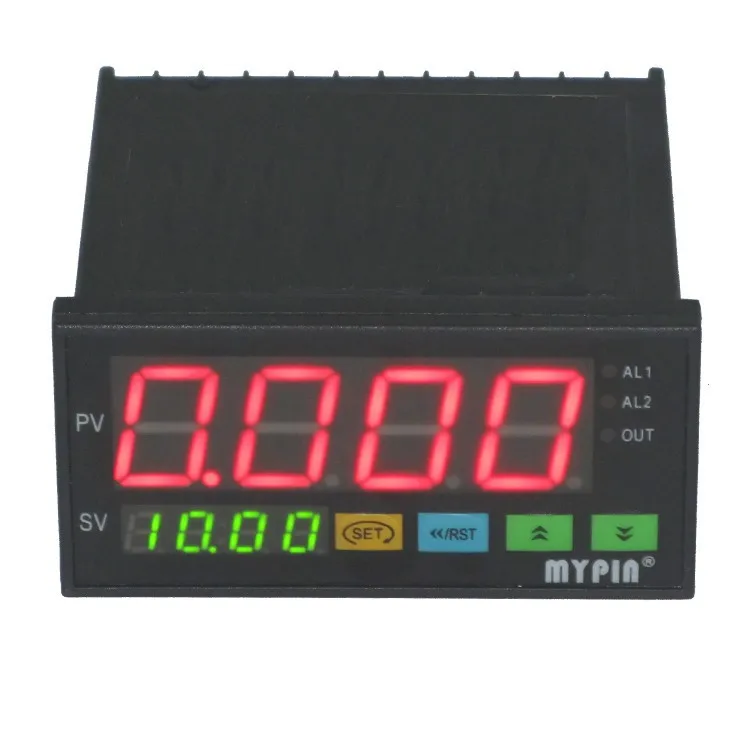

LC8 dual line 4 digits display
LC8 single line 4 digits display
1,Rapid response(16-128 times/sec.Max 1000),high precision,steady performance and easy to
operate.Connect withstandard signal,loadcell orther forcing transducer for max instantaneous
pulling/tension force & current of equipments and motors.Data-holding/peak-valley keeping
function available.Apply in weight/forces lab testing or auto controlling in the industry of
2,Input:4-20mA/0-30mV,loadcell or other forcing transducer.
3,Display:Peak/Valley/Instantaneous value,Reset by extra terminal.
Digit output: up to 4 lines output for various ingrediants & weight control.
Aux.power:+12V/40mA,+12V/150mA,2-wire 24V/30mA (for option).
4,Aux.power:+12V/40mA,+12V/150mA,2-wire 24V/30mA (for option).
5,Accuracy: 5 digits,0.1%, 6 digits,0.05%,Demical float setting.
6,Communication:standard RS232/RS485 interface,MODBUS RTU protocol,realize
remote control by direct connection with PC/PLC/other equipment.
7.Width power supply: regular: 90-260V AC/DC, others:12-30V AC/DC.
Main product:Panel Meter
Current/Voltage/Power meter,various sensor indicator
Frequency / Tacho / Batch / Length /Linespeed Meter
Flow / Level /Pressure Controller
Proximity/ Photoelectrical Switch
They are widely used in industrial control and measurement field, such as machinery, electrical cabinet, power sub-station, industrial automation, etc..
Additonally,OEM service,Design service offer, Buyer laber offer
