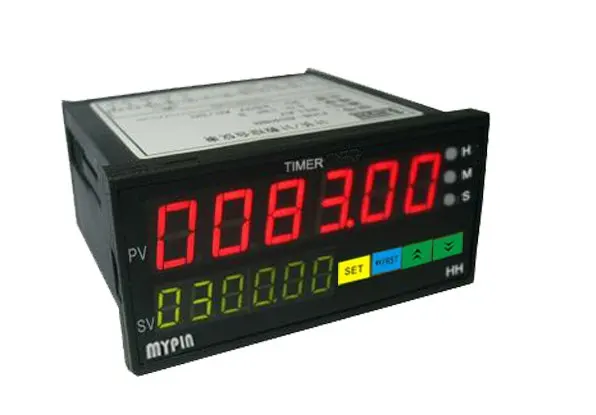

2011---HH series 240V/24V Industrial type Programmable electric timer Switch(Multifunction),Time Delay Device

FOB Reference Price:Get Latest Price
$16.00 - $30.00 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Mypin
Model Number:
HH8
Theory:
Electronic
Usage:
Industrial
Type:
programmable timer
Display:
4 digits LED
Power consumption:
<3 W
Voltage supply:
90-260V or 12-30V AC/DC
Mesuring range:
0.01S --999999H
Character:
sexagesimal timer
Dimension:
various
Case class:
IP65
Size:
48*96*80mm
Time Relay:
Time Relay
Supply Ability
Supply Ability:
200 Unit/Units per Day
Packaging & Delivery
Packaging Details
each pieces packed in box lined with plastic bag,then every 30 or 50 box in carton
Port
Shengzhen

2011---HH series 240V/24V Industrial type Programmable electric timer Switch(Multifunction),Time Delay Device



Product Description

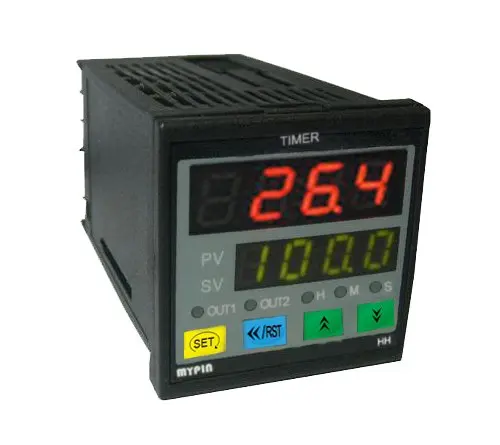

HH4 series, 48*48*80mm,dual line 4 digits display

HH8 series, 48*96*80mm, dual line 4 digit display

HH8 series,  48*96*80mm,dual line 6 digits display



High precision,Simple operation,Various sizes for option.The timer is widely used in machinery which requires precise timing.



Usage:

       timing,realy/SSR output for control(eg.step control),or Mechnical life tester(Some customers request for this special meter for test the use-life of equipment).

Specifications:

      Display digit & modes: 4 digit display( 6 digit for option),

                                             display modes settable: H, M, S, H+M, M+S
      Timing Modes: 3 kinds of timing modes: R,F,N.
      Dimensions: 48*96 (48*48,96*48,72*72 for option)
      Power Supply: 80-260V AC/DC (12-30V AC/DC for option)
      Accuracy: 0.1% F.S
      Timing range: 0.01s--9999H
Optional Function:

       up to 2 relay or SSR ouput.
       RS485 or RS232 interface.
MOQ:10 pcs.
Delivery time: 2 - 15 business day according the order capacity.
Sample Avialability: 5 pcs at least, at your charge.
Packing details: each packed in small box lined with plastic bag, then put into cartons
Time of life utility: Machnical life: more than million times, Electric life: 100 thousand times
                it does not depends on the hours..



Models:



Model and TypeOutputPresetDisplayDisplaySize
HH4-4RNRelay output1 preset  0.01s~9999H4 digit48× 48mm

HH8-4RNRelay output 1 preset   0.01s~9999H4 digit 48× 96mm
HH8-6RNRelay output 2 preset   0.01s~999999H6 digit 48× 96mm

HH7-6RNRelay output 1 preset   0.01s~999999H6 digit 72× 72mm



Model and TypeOutputPresetDisplayDisplaySize
HH4-4SNSSR  output1 preset  0.01s~9999H4 digit48× 48mm

HH8-4SNSSR   output 1 preset   0.01s~9999H4 digit 48× 96mm






HH7-6SNSSR  output 1 preset   0.01s~999999H6 digit 72× 72mm





Packaging & Shipping







1.The complement packing contains 1 meter, 1 manual and 1 pair of brackets.

2.Items are usually shipped within 3 to 15 business days after payment has been received, which according to the quantities.

3.Shipment is by Sea, Freight or Courier(DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL) as per clients request.





Our Services





  • We provide 18 months warranty for all Mypin products.
  • OEM / ODM service available to meet up to client's requirements
  • Any questions, please mail or call us any time

Company Information



Main product:Panel Meter

                     Counter

                     Weighing indicator

                     Temperature/Humidity Controller

                     Current/Voltage/Power meter,various sensor indicator

                     Frequency / Tacho / Batch / Length /Linespeed Meter

                     Flow / Level /Pressure Controller

                     Proximity/ Photoelectrical Switch

                     Timer,Timer Relay

                     Sensor Controller

                     Signal adjustor

  They are widely used in industrial control and measurement field, such as machinery, electrical cabinet, power sub-station, industrial automation, etc..



  Additonally,OEM service,Design service offer, Buyer laber offer.
