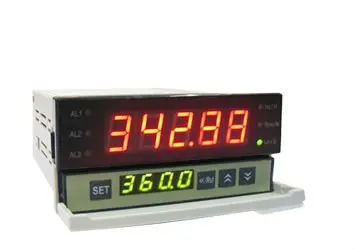

DP5/6 Precision Sensor Controller instruments, Multimeter for measurement & analysis

FOB Reference Price:Get Latest Price
$30.00 - $80.00 / Pieces | 5 Piece/Pieces (Min. Order)
Usage:
Process Testing Machine Universal Testing Machine
Lead Time:
Quantity(Pieces) 1 - 10 11 - 100 >100
Est. Time(days) 4 8 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Mypin
Model Number:
DP5/6
Power:
Electronic
Product name:
sensor measuring instruments
Sampling speed:
16-128 times/s
Display:
5/6 digit LED
Display Type:
Digital Only
Accuracy Class:
0.1% or 0.05%F.S
Measuring Range:
-19999~999999
Dimensions:
48H*96W 96W*96H mm
Supply Voltage:
90-260V AC/DC or 24V
Weight:
about 350g
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Each in small box lined with plasitc bag,then every 50pcs packed in cartons
Port
Zhongshan
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 >100
Est. Time(days) 4 8 To be negotiated

DP5/6 Precision Sensor Controller instruments, Multimeter for measurement & analysis

Features:

1, Full 5/6 digit display for precision sensor measurement or calibrator. 5 digit,

    range: -19999--99999, 6 digit (24 byte A/D calibrator),  range:-199999- 999999. Data/ peak

    value holding function for option.

2, Input:  0-10V/ 4-20mA/ 0-100mV, Others: indicate by user.

    Sampling speed: 16-128 times/ sec.

    Accuracy: 0.1% (5 digits ),  0.01-0.05% (6 digits).

3, Analog output: Isolated 0-10V/4-20mA, etc.  output range adjustable by software

    Digit output: up to 4 lines output/ OC alarm output, various output modes selectable

4, Aux.power: +12V/40mA, 24V/30mA.

5, Communication: standard RS232/RS485 interface,  MODBUS RTU protocol,  realize remote control

    by direct connection with PC/PLC/other equipment.

5, Size: DP58: 96*48*80mm     DP59:  96*96*100mm.

   Case class: IP65.

6, Power supply:  regular: 90-260VAC/DC,   others: 12--30V AC/DC.

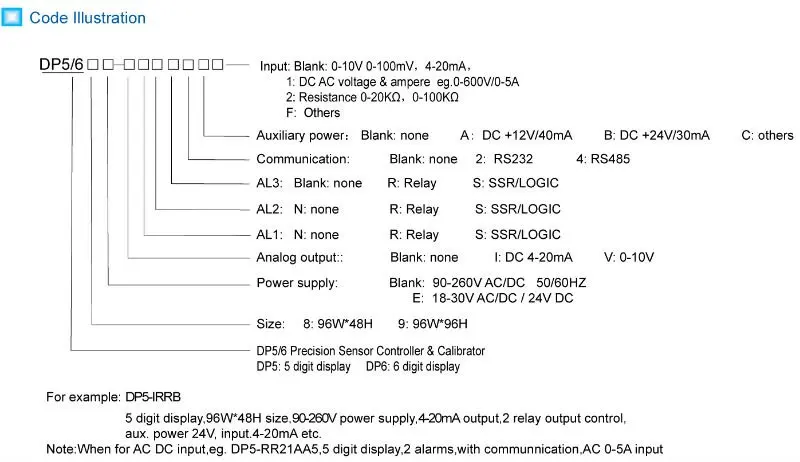

Code Illustration:

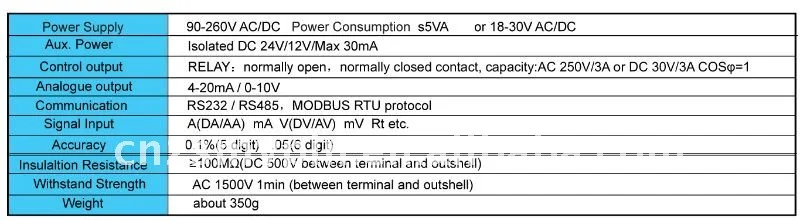

Technical Specifications:

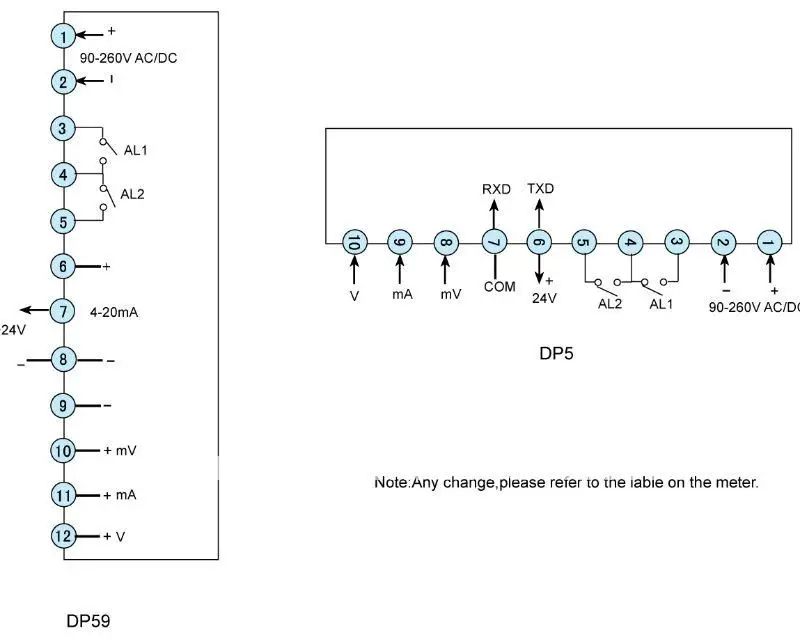

Diagram:

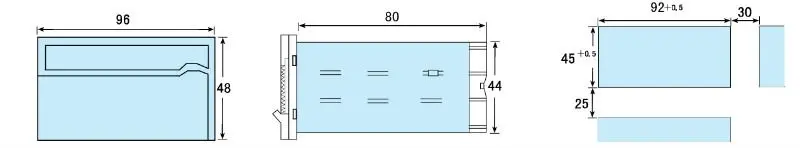

Mounting & Installation:
