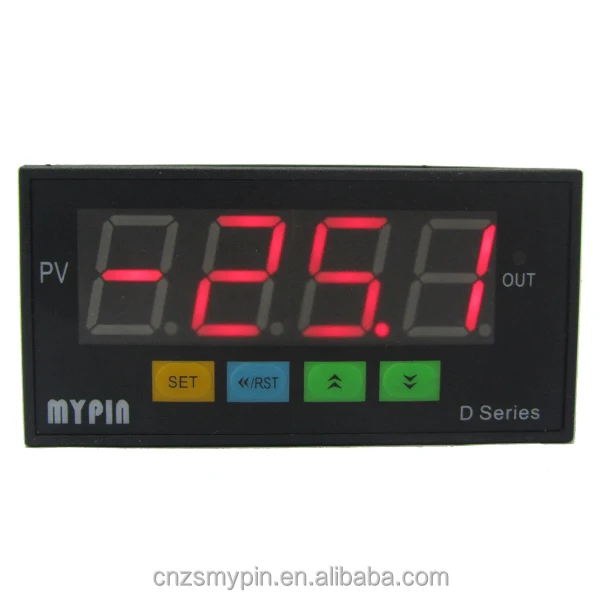

DM series Digital Sensor Indicator/Controller--2011
1) Application with various sensor for pressure/temp./weight/humidity/level/resistance
measurement,or AC/DC volt/ampere of various specifications, eg.DC 0-600V,DA 0-10A. Easy to
2) Single line big inch full 4 LED display, rane: -1999~9999.
Demical floating display,repid sampling speed,accuracy:0.3%.
3) Input: regular 4-20mA/0-10V/0-75mV, Others: configured group of signals,such as DC 0-10V,4-20mA,Pt100; TC(K \J\S\E\R\B\T)Pt100, or AV100V,AA0-5A.
4) Analog output:Isolated 0-10V/4-20mA,etc.,output range adjustable by software. Digit output: up to 2 lines relay / OC alarm output,high/low/interval alarm modes for option
5) Aux.power: 24V/30mA for 2-wire transmitter 12V/40mA for loadcell.
6) Communication:standard RS232/RS485 interface,MODBUS RTU protocol, realize remote control by direct connection with PC/PLC/other equipment.
1.The complement packing contains 1 meter, 1 manual and 1 pair of brackets.
2.Items are usually shipped within 3 to 15 business days after payment has been received, which according to the quantities.
3.Shipment is by Sea, Freight or Courier(DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL) as per clients request.
Main product:Panel Meter
Current/Voltage/Power meter,various sensor indicator
Frequency / Tacho / Batch / Length /Linespeed Meter
Flow / Level /Pressure Controller
Proximity/ Photoelectrical Switch
They are widely used in industrial control and measurement field, such as machinery, electrical cabinet, power sub-station, industrial automation, etc..
Additonally,OEM service,Design service offer, Buyer laber offer.
