Weighing Controller for Ration Batching Scale
For:--Industrial Weighing Application
--build-in filling dosing weighing controllers
Features:
1, Applications : Work with loadcell /other sensors, the instrument has function of clearing zero &
PV modification, up to 6 lines output control with various control modes, such as Pause. Stop,
Slow/Fast motion. etc. Rapid response, high precision, steady performance and easy to operate.
Except for weight control, auto accumat/ mean for up/ down batch control can be applied in the
industries of land weight/ cement/ food pakage/ chemical ingredients.
2, Input : 1/4 loadcell, or other signals such as 4-20mA,0-10V,0-75mV,etc..
3, Analog output : 0-10V/4-20mA,etc. output range adjustable by software.
Digit output : up to 6 lines output for various ingrediants & weight control.
4, Aux.power : +12V/40mA, +12V/150mA, 2-wire 24V/30mA (for option).
5, Accuracy : 5 digits, 0.1%; 6 digits, 0.05%, Demical float setting, Steady & correct measurement..
6, Communication : standard RS232/RS485 interface, MODBUS RTU protocol, realize
remote control by direct connection with PC/PLC/other equipment..

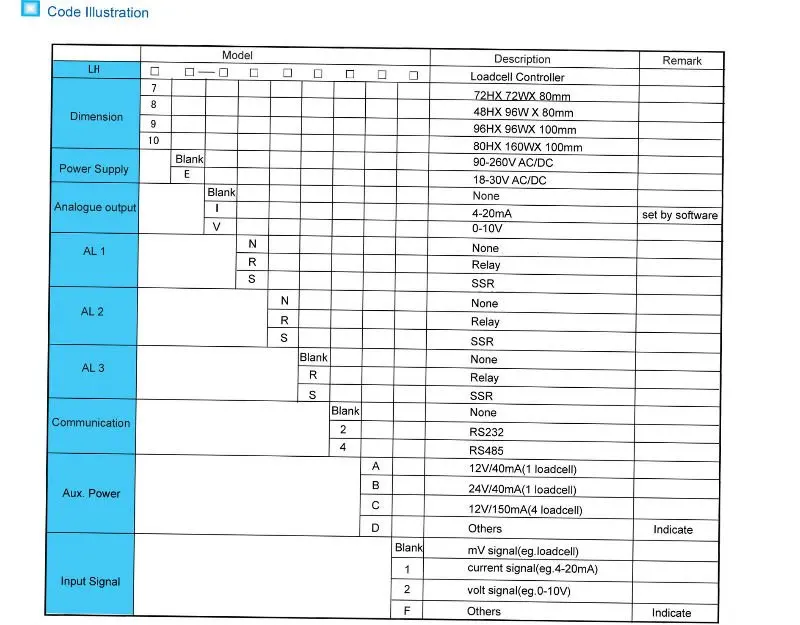

Model no.
Output
Alarm no(mode)
Communication
Size
Aux. power
Power supply
LH86-RRD
None
2 no.s(relay)
None
48*96*80mm
5V DC
90-260V AC/DC
LH86-IRR4D
4-20mA
2 no.s(relay)
RS485
48*96*80mm
5V DC
90-260V AC/DC
LH86E-NNC
None
None
None
48*96*80mm
5V DC
12V/24V DC
LH85-RRC
None
2 no.s(relay)
None
48*96*100mm
5V DC
90-260V AC/DC
LH85-VRRC
0-10V DC
2 no.s(relay)
None
48*96*100mm
5V DC
90-260V AC/DC
LH10-RR2D
None
2 no.s(relay)
RS232
160*80*100mm
5V DC
90-260V AC/DC
Power supply: 90-260V AC/DC or 12V DC or 24V DC Output: 4-20mA or 0-10V DC Communication: RS485 or RS232, MODBUS PROTOCOL Alam mode: SSR or Relay
Packaging & Shipping
1.The complement packing contains 1 meter, 1 manual and 1 pair of brackets.
2 .Items are usually shipped within 3 to 15 business days after payment has been received, which according to the quantities.
3.Shipment is by Sea, Freight or Courier(DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL) as per clients request.
Our Services
We provide 18 months warranty for all Mypin products. OEM / ODM service available to meet up to client's requirements. Any questions, please mail or call us any time.
