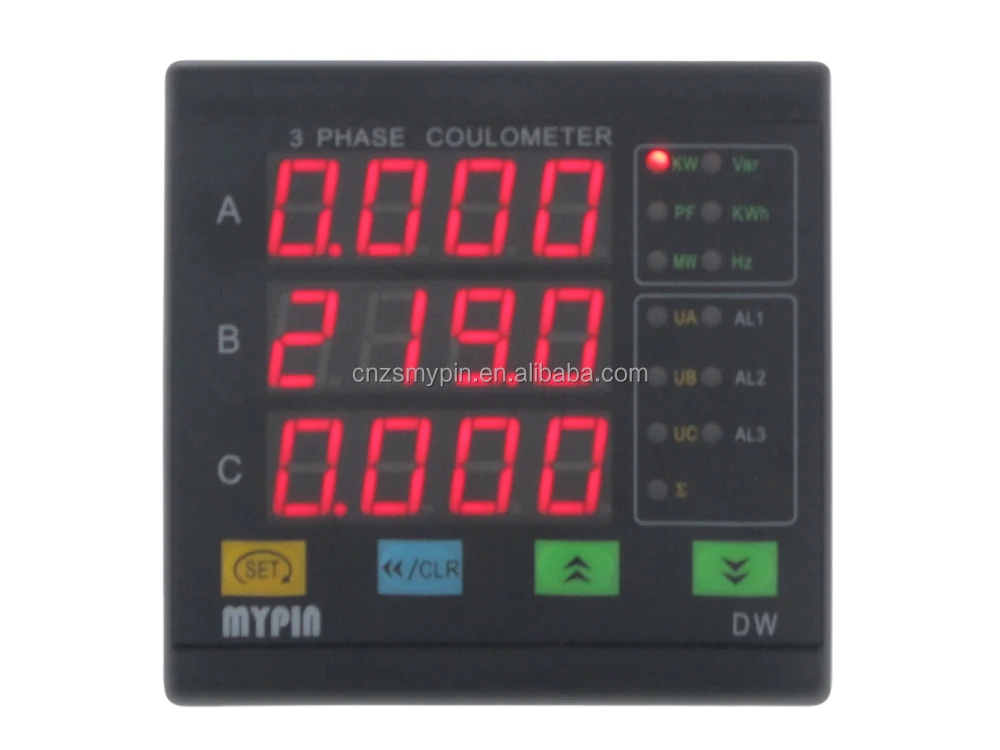

High quality DW93 110/220V AC 50/60Hz 3 phase current voltage frequency meter

FOB Reference Price:Get Latest Price
$25.00 - $100.00 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Mypin
Model Number:
DW93
Measuring Current Range:
any>1uA
Measuring Voltage Range:
any>1mV
Accuracy Class:
0.2%
Operating Temperature:
-20~50
Dimensions:
96X96mm
Display:
4 digits red LED
Power Supply:
85~265VAC/DC
color:
Black
Communication:
RS485/RS232, Modbus-RTU
Power Consumption:
5VA
Frequence:
0-2.5KHz
function:
testing Power , Power factor, Voltage ,Current,and kwh
Key Words:
power meter
IP index:
IP65
3 phase current voltage frequency meter:
3 phase current voltage frequency meter
Supply Ability
Supply Ability:
500 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
each pieces packed in box lined with plastic bag,then every30 or 50 box in carton
Port
Shenszhen
High quality DW93 110/220V AC 50/60Hz 3 phase current voltage frequency meter

Product Description

  1, Widely used in auto control over electricity distribution system in electrical

    system/ factory distribution/building automation, etc..

    True effective value measure for more than 32 parameters, such as voltage/

   current/ power/ power factor/ frequency/ KWh/ reactive power/power

    frequency,etc. CT PT set freely. Single/3 phase 3/4-wire.

2, Input: any range of volt/ampere input, eg.0-5A/0-600V. True effective value

    measurement.

3, Accuracy 0.2% for voltage & current,  0.3%-0.5%  for power factor.

4, 3 configurable alarm outputs for control, 8 lines at most. Other special functions

    can be customized.

    Optional 4-20mA/0-10V output.

5, Communication:  standard RS232/RS485 interface, MODBUS RTU protocol

    realize remote control by direct connection with PC/PLC/other equipment.

6, Main dimensions:   DW8: 96*48*80mm    DW9:  96*96*100mm.

7, Power supply:   regular: 90260V AC/DC,  others: 12-30V AC/DC(DC 24V).

   Case class: IP65..








Packaging & Shipping

Shipment by Sea, Freight, or DHL/UPS/FEDEX/TNT/EMS/CHINA POST MAIL as per client's requirements.









Our Services



We provide 18 months warranty for all Mypin products.

OEM / ODM service available to meet up to client's requirements








Company Information





Main product:Panel Meter

                     Counter

                     Weighing indicator

                     Temperature/Humidity Controller

                     Current/Voltage/Power meter,various sensor indicator

                     Frequency / Tacho / Batch / Length /Linespeed Meter

                     Flow / Level /Pressure Controller

                     Proximity/ Photoelectrical Switch

                     Timer,Timer Relay

                     Sensor Controller

                     Signal adjustor

  They are widely used in industrial control and measurement field, such as machinery, electrical cabinet, power sub-station, industrial automation, etc..



  Additonally,OEM service,Design service offer, Buyer laber offer.
