Dimensions: 96W*96H*80L mm
Power Supply: 90-260V AC/DC

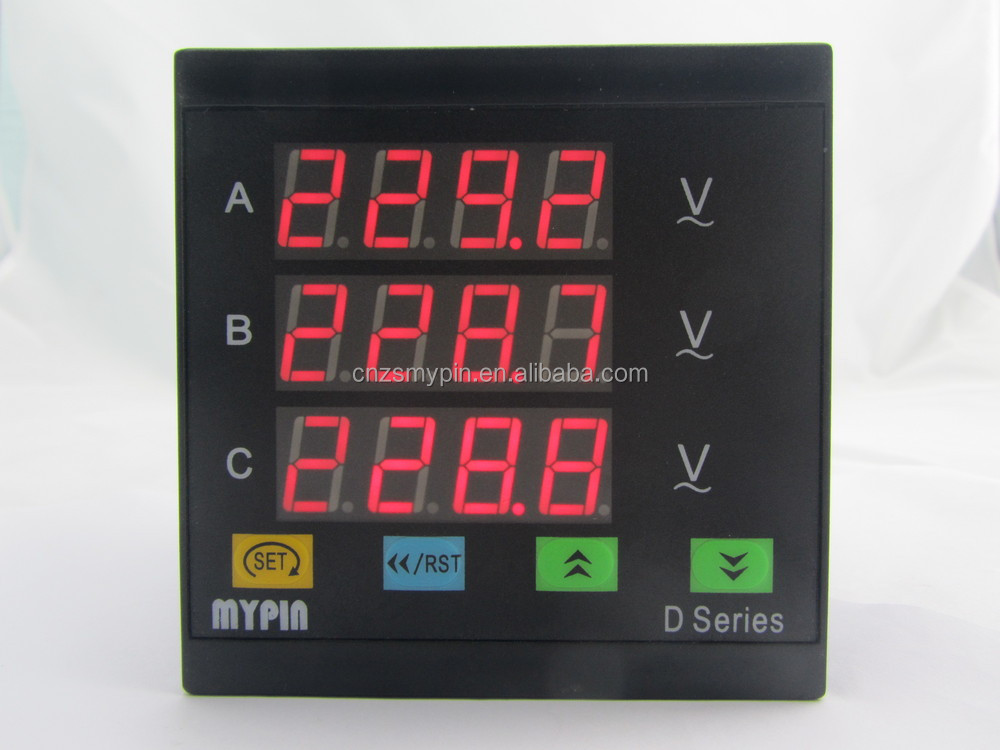

Measure parameters: True effective value measurements for 3 phse Volt,
Input: AC 0-600V (large current/volt can be input by working with relative PT)
Volt ratio: PT set freely
Accuracy: Volt: ± 0.2%FS± 2 digit
Frequency:0-400Hz ± 1Hz
Alarm output: none
Sampling speed:about 2 times/sec.
Withstand voltage:AC 1500V/1min, (between terminal and outshell)
Resolution resistance: 100MΩ
Work environment: 0~50°c humidity: 35-85%RH
Weight: about 450g.
Shipment by Sea, Freight, or DHL/UPS/FEDEX/TNT/EMS/CHINA POST MAIL as per client's requirements.
We provide 18 months warranty for all Mypin products.
OEM / ODM service available to meet up to client's requirements.
Main product:Panel Meter
Current/Voltage/Power meter,various sensor indicator
Frequency / Tacho / Batch / Length /Linespeed Meter
Flow / Level /Pressure Controller
Proximity/ Photoelectrical Switch
They are widely used in industrial control and measurement field, such as machinery, electrical cabinet, power sub-station, industrial automation, etc..
Additonally,OEM service,Design service offer, Buyer laber offer.
