TA series auto tuning PID Temperature Controller

FOB Reference Price:Get Latest Price
$14.00 - $50.00 / Pieces | 5 Piece/Pieces (Min. Order)
Usage:
Industrial
Theory:
Temperature Controller
Accuracy:
0.3%
Temperature range:
0~50C
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Mypin
Model Number:
TA
Accuracy:
0.3%
Temperature Controller:
Temperature Controller
Supply Ability
Supply Ability:
200 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
each pieces packed in box lined with plastic bag,then every 30 or 50 box in carton
Port
shengzhen

TA series auto tuning PID Temperature Controller



Brand

MYPIN

Mode

TA series

Type

Intelligent temperature control and adjuster

Measuring Range

-200~1800(°C)

Precision Grade

0.3%

Accuracy

0.1(°C)

Holing Dimensions

6 kinds selectable (mm)

Install Type

Coil

Signal Output

SSR RELAY 4-20mA(mA)

Power

12-30V or 80-260V(V)

Dimensions

6 kinds selectable(mm)







Features:



1, Input:universal TC(K,J,S,E)/RTD(Pt100,CU50),or standard 4-20mA/0-100mV/0-10V(2-wire sensor power supply 24V/30mA is available when standard signal input);Or mV/mA/V/A/Tc/RTD/Ω input.

2, Accuracy:0.3%;Control:Normal PID and Fuzzy PID Auto-tuning function,accuracy and reliable.

3, Optional control output:Relay,SSR,SCR or 4-20mA; the analog output can be use for PID function or PV transmitter by setting the menu freely;2 alarm output for 7 output.

mode: high value,low value,upper deviation,down deviation,in or out of interval,breakage.

4, 2 isolated PID for heating and cooling at the same time.

5, Step-type control,heating/cooling PID,temperature,pressure,level,flow control fuctions available; Widely applicatable with auto system in line of  light industry,chemistry,machine,metallurgy,ceramics,pertrification industry, or temperature control and adjust system of food&beverage;oven;furnance,plastic extruder heating process etc.

6, Dimensions:TA4: 48*48*80 TA6: 48*96*80 TA8: 96*48*80 TA7: 72*72*80 TA9: 96*96*100 TA10: 160*80*70, Case class:IP65.

7, Power supply:regular: width power 80-265V AC/DC,others:12--30VAC/DC indicate when ordering.



Code Illustration:

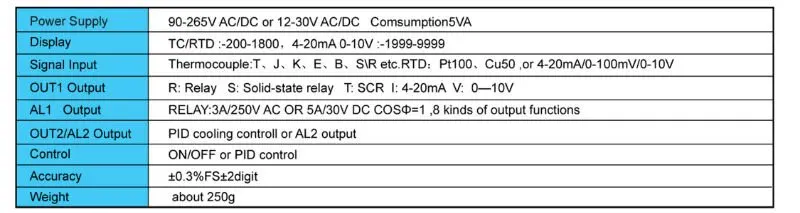

Technical Parameters

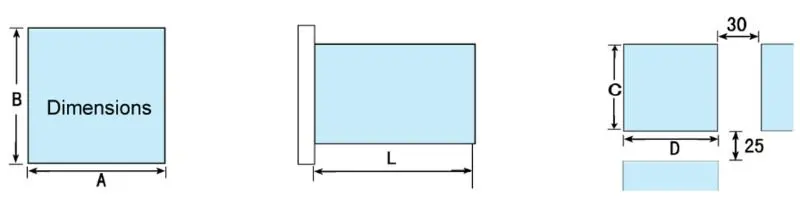

Mouting & Installment







   We can manufacture thousands of different models of products, including Temperature Controller, Digital Adjustor,thermocouple (TC and RTD), Panel Meter, Sensor Meter, inductor, Power Meter, Coulometer, Voltage Meter, Ampere Meter, Counter, Tacho Meter,  Frequency Meter, flowmeter,Timer,Timer Relay, Solid State Relay, Proximity Sensor, ,Pressure sensor ,load cell sensor, KNE KSC box, Rotary Encoder and computer integrated control system etc. They are widely used in industrial control and measurement field, such as machinery, electrical cabinet, power sub-station, industrial automation, etc.;

   In addition to supply MYPIN brand products, We have successfully cooperate in more than 20 domestic and international customers on OEM basis, and provide customer PRIVATE brand services so as to achieve mutual benefits and the exchangeof needed goods. you are welcome to contact us at any time, we are ready to offer you the immediate answer.
