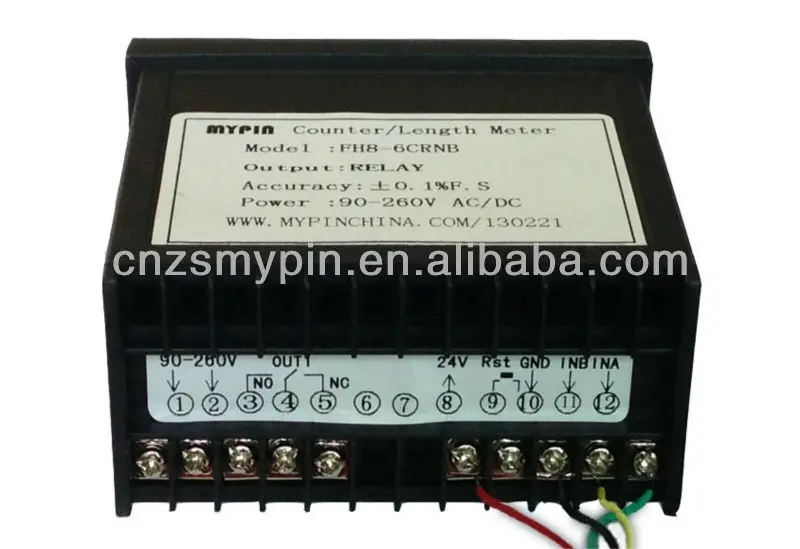

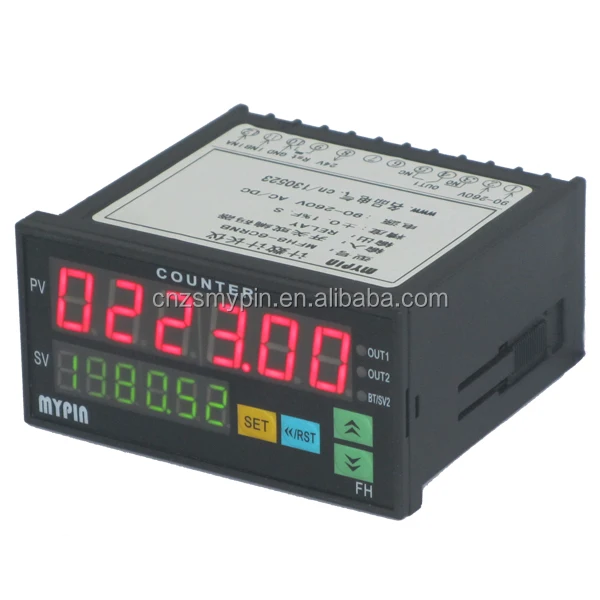

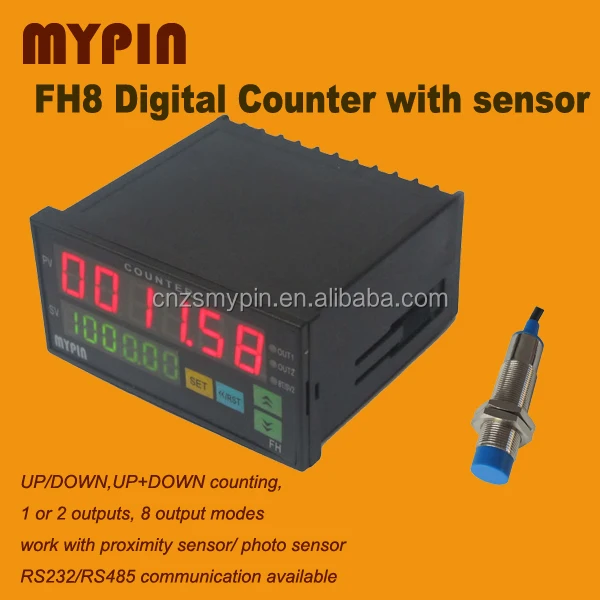

FH8-6CRRB 2 Preset digital counter 90-260v AC-DC(MYPIN)
Please check the video in Facebook
Display: dual line 6 bit LED
Counting range: -199999~999999
Coefficien set up range:0.00001~99999.9
2 no.s of Output(preset) : relay( AC 250V/3A,DC 30V/3A cos¢=1.
Output mode: R.N,C.F.H,L
Input resistance: ≥10KΩ
Environment:0-50C, 35-85% RH
Aux. power:24V DC +/-5% 30mA max.
power off memory :over 10 years(25°c) .

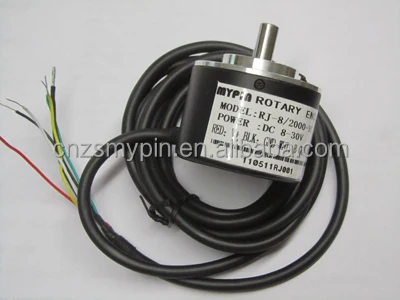

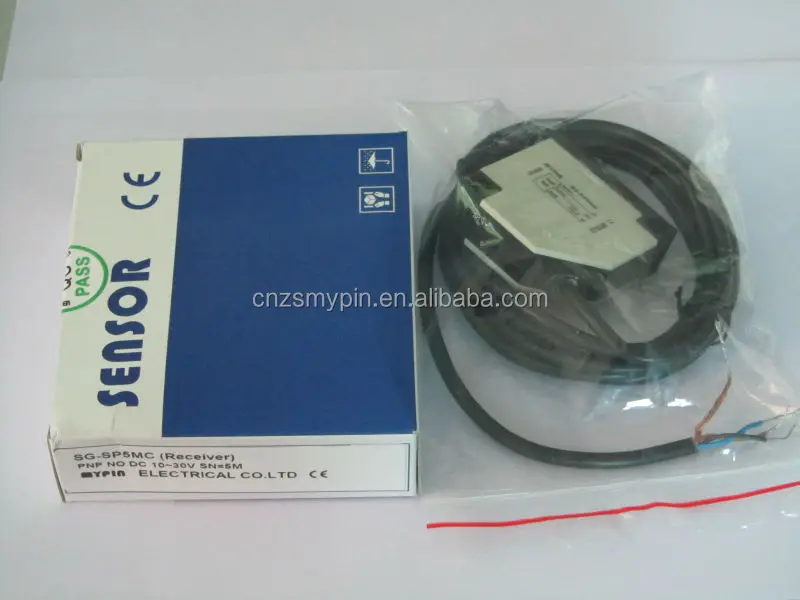

Can work with the below sensors
Wiring with Wheeled length sensor
1.The complement packing contains 1 meter, 1 manual and 1 pair of brackets.
2.Items are usually shipped within 3 to 15 business days after payment has been received, which according to the quantities.
3.Shipment is by Sea, Freight or Courier(DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL) as per clients request.
Main product:Panel Meter
Current/Voltage/Power meter,various sensor indicator
Frequency / Tacho / Batch / Length /Linespeed Meter
Flow / Level /Pressure Controller
Proximity/ Photoelectrical Switch
They are widely used in industrial control and measurement field, such as machinery, electrical cabinet, power sub-station, industrial automation, etc..
Additonally,OEM service,Design service offer, Buyer laber offer.
