Red DC 24V 4 Digit Digital LED Counter Panel Meter Up and Down Totalizer -1999-9999

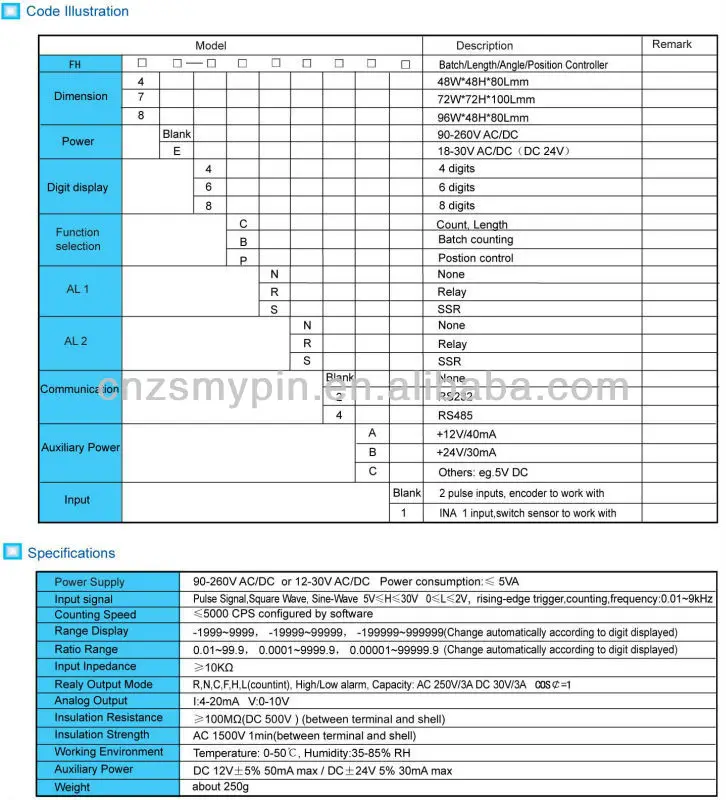

FH4 dual line 4 digit display, size 48*48*80mm
1, Widely used in Machinery/Electronic/Food/Package industry for counting, length, batch counting.
Receive signals from various switches/encoder for height, position, angle, etc.
measurement. Count no. /length value presetable. When for batch.
counting, Accumulate counte value/current batch count value & batch no. will displays at the
same time. Several outputs settable.
2, Accuracy: 0.01%, dual line 4 digit display. Resolution 0.0001. Photo isolation for input &
3, Input: 4 modes(add counting, substract counting, add & substract counting, phase
difference input) for various waveform pulse/raster/ proximity switch/
photoelectrical switch/contact switch/encoder (PNP/NPN), etc.
4, Output: 8 modes—reset until counting to delay time, Reset one c.ount to presetn value, keep
count value and output & hand reset, count to output & continue counting, high alarm value
output, low alarm value output).
Up to 2 alarm outputs with various control modes for selection.
5, Auxiliary power: 12V/24V/30mA, All datas are keeped by FLASH EEPROM in case of power-
6, Communication: standard RS232/RS485 interface, MODBUS RTU protocol.
realize remote control by direct connection with PC/PLC/other equipment.
Shipment by Sea, Freight, or DHL/UPS/FEDEX/TNT/EMS/CHINA POST MAIL as per client's requirements
We provide 18 months warranty for all Mypin products.
OEM / ODM service available to meet up to client's requirements.
Frequency / Tacho / Batch / Length /Linespeed Meter
Flow / Level /Pressure Controller
They are widely used in industrial control and measurement field, such as machinery, electrical cabinet, power sub-station, industrial automation, etc..
